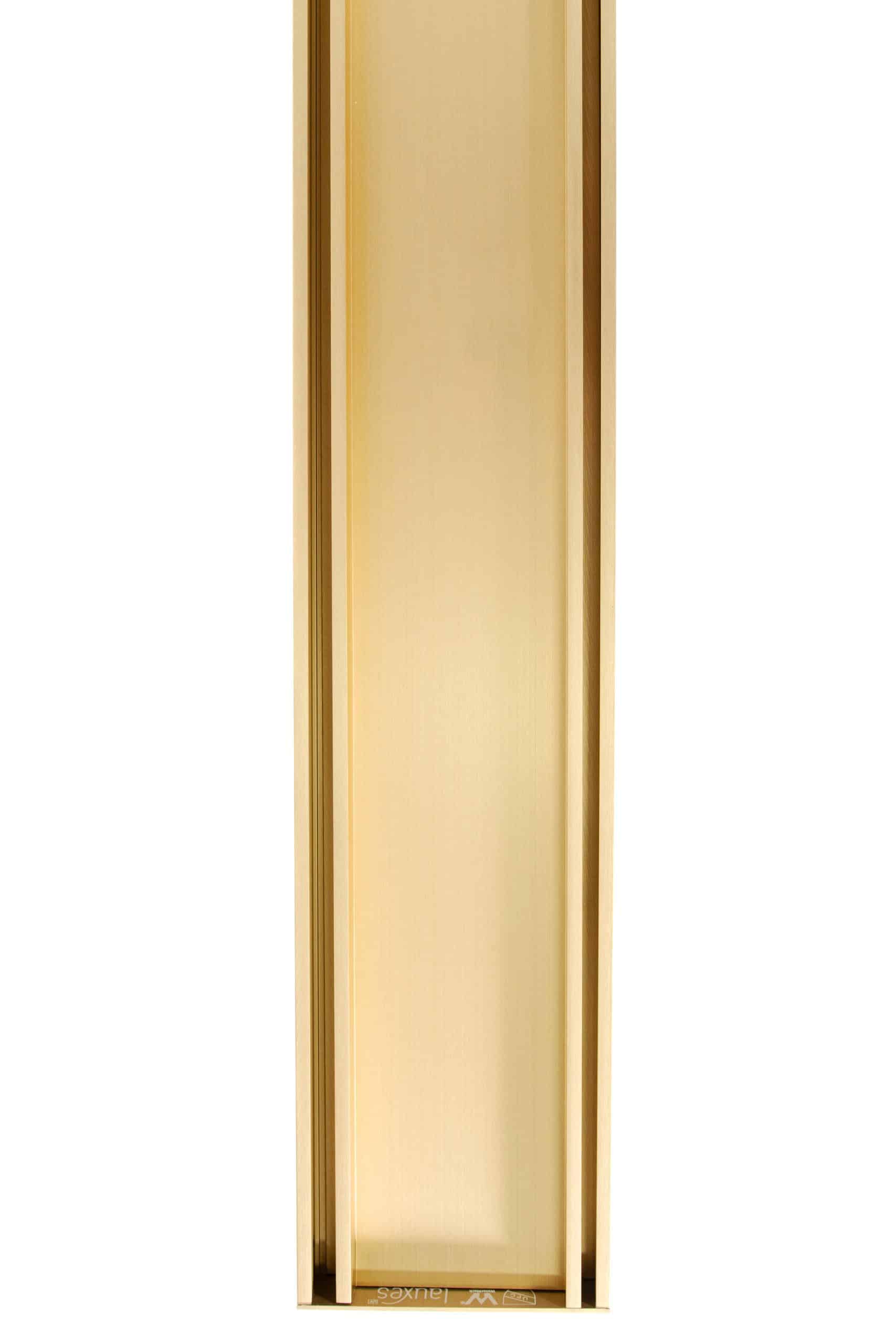

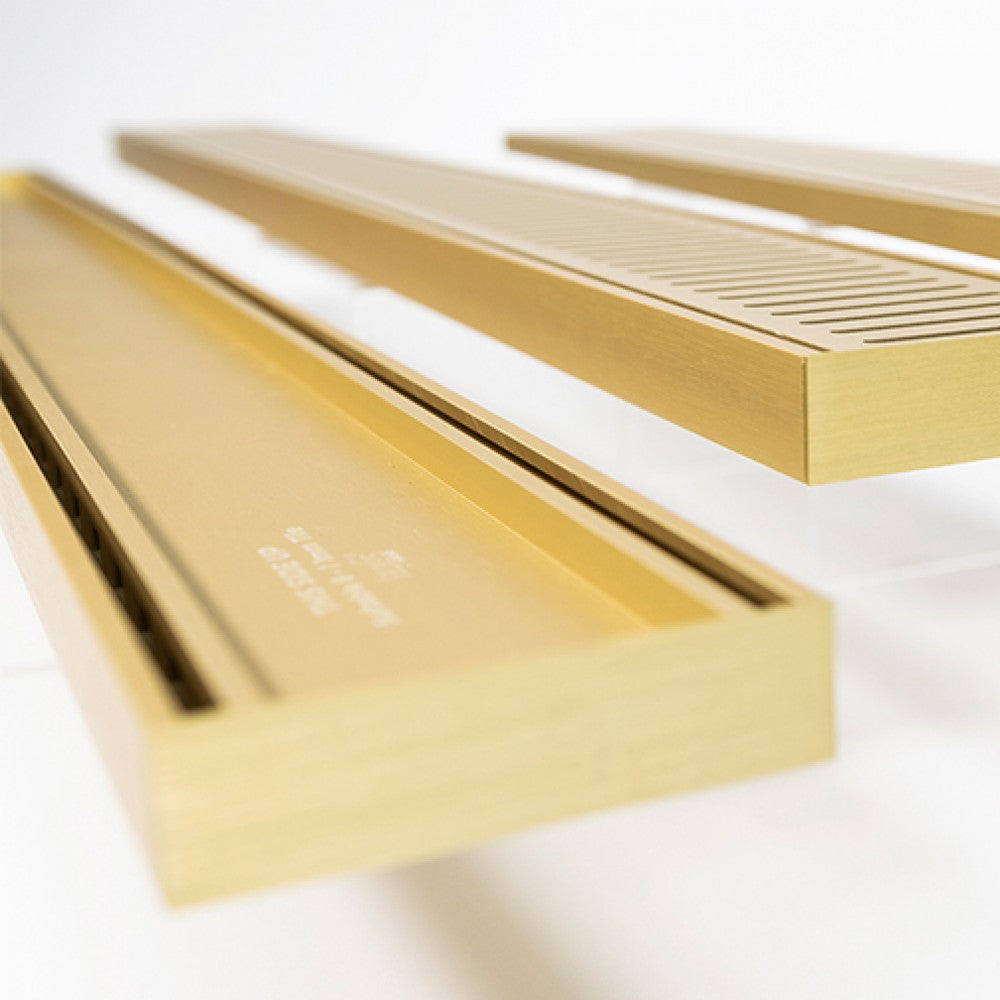

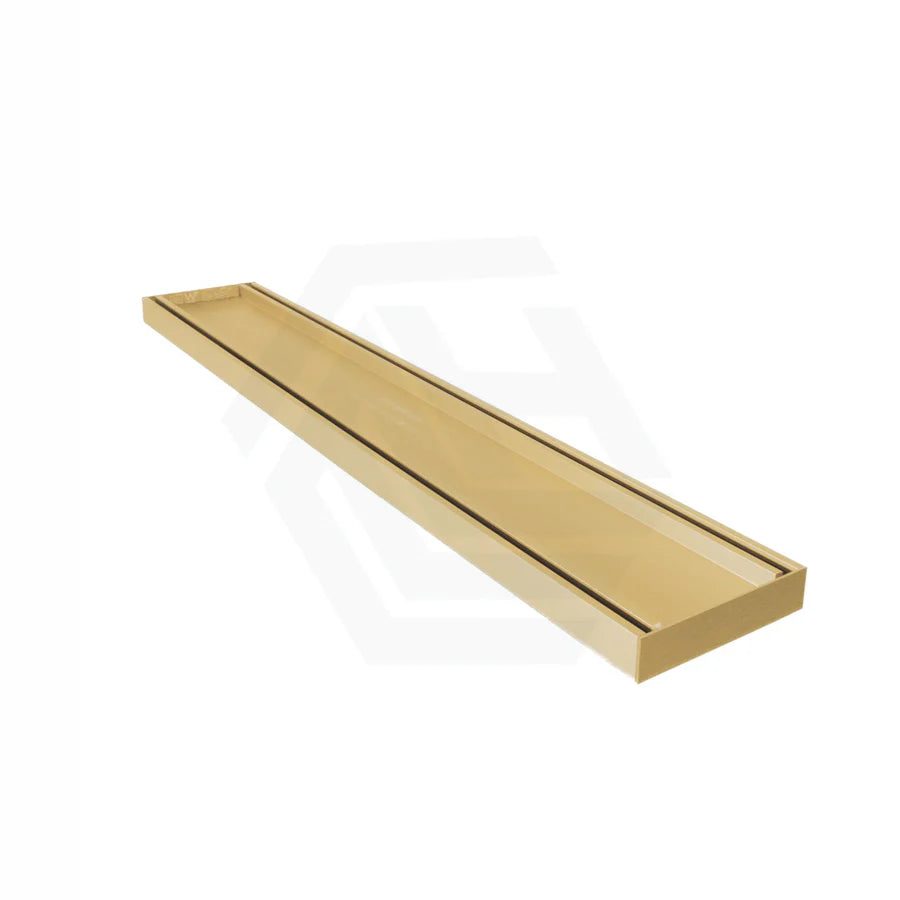

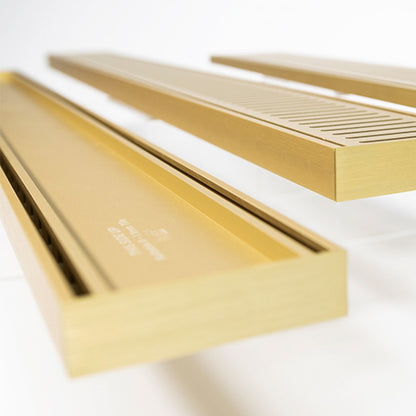

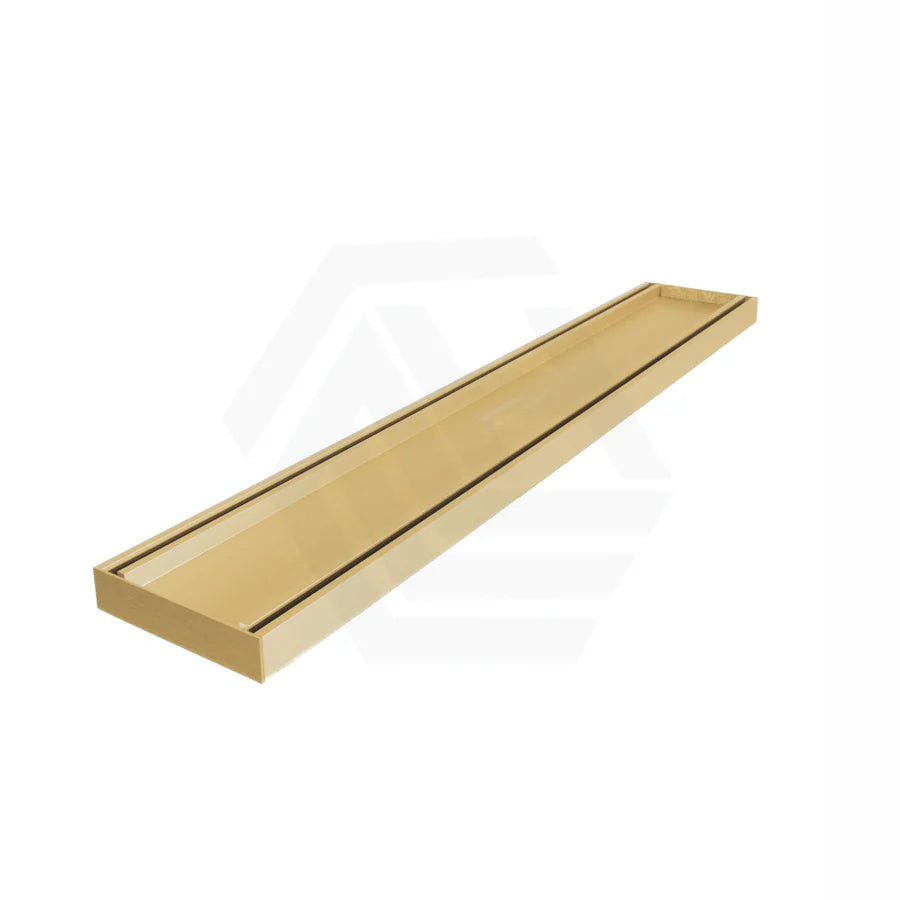

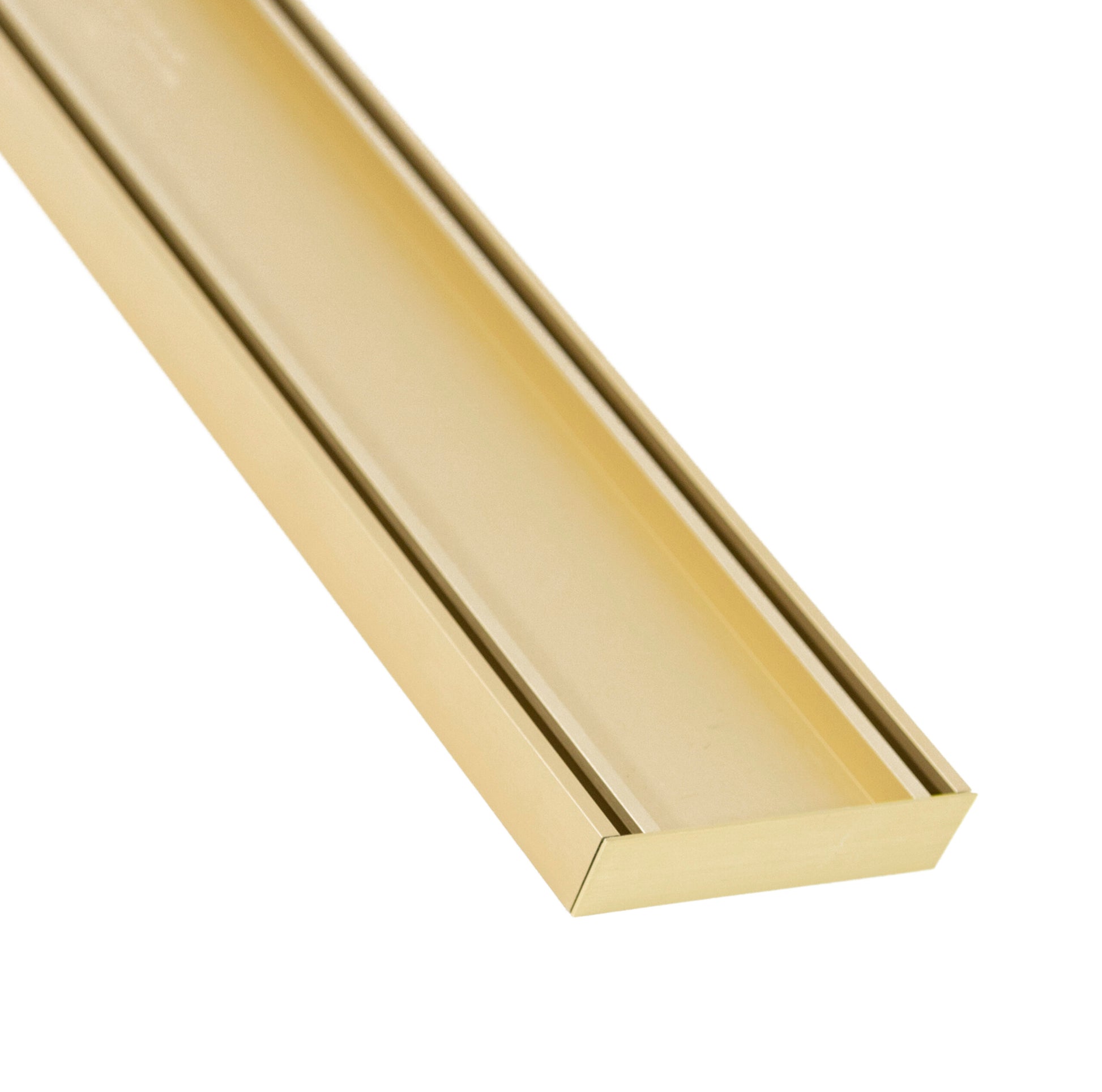

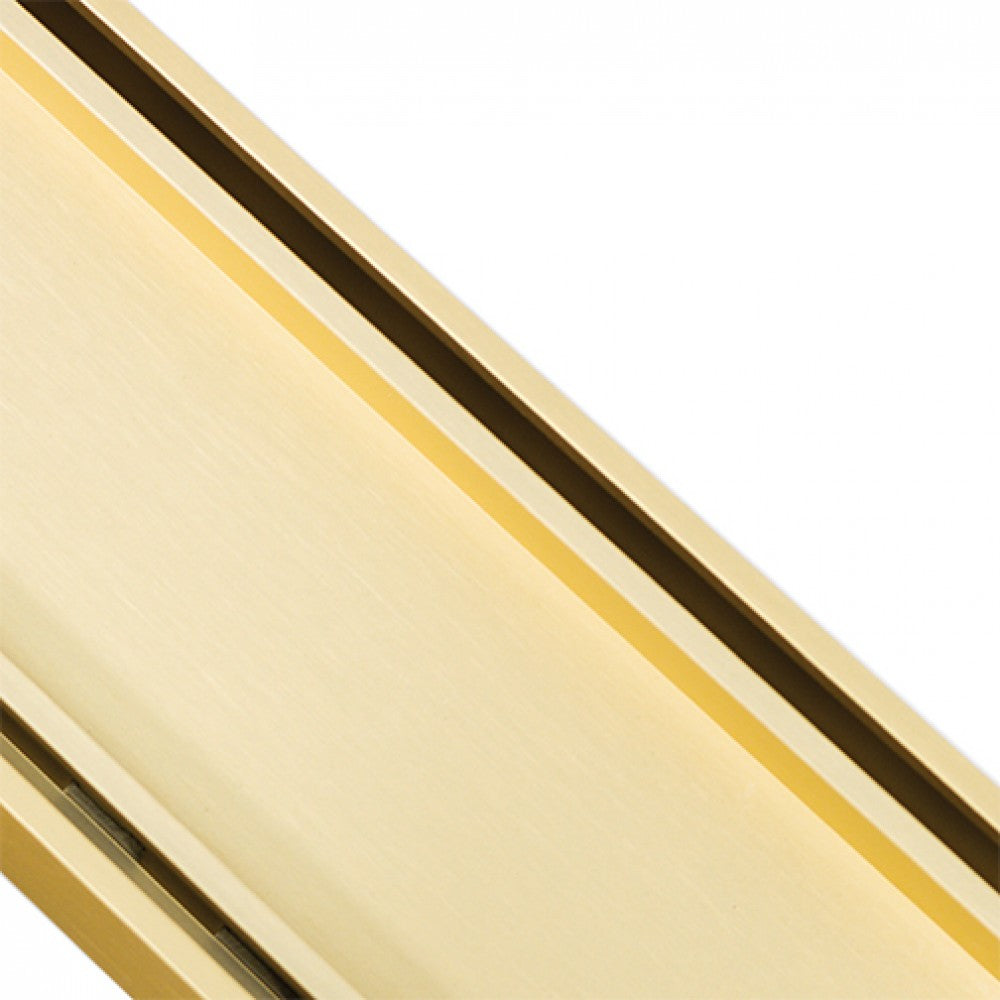

LAUXES SLIMLINE ALUMINIUM TILE INSERT CHANNEL DRAIN - MATTE GOLD

Lauxes Slimline Tile Insert

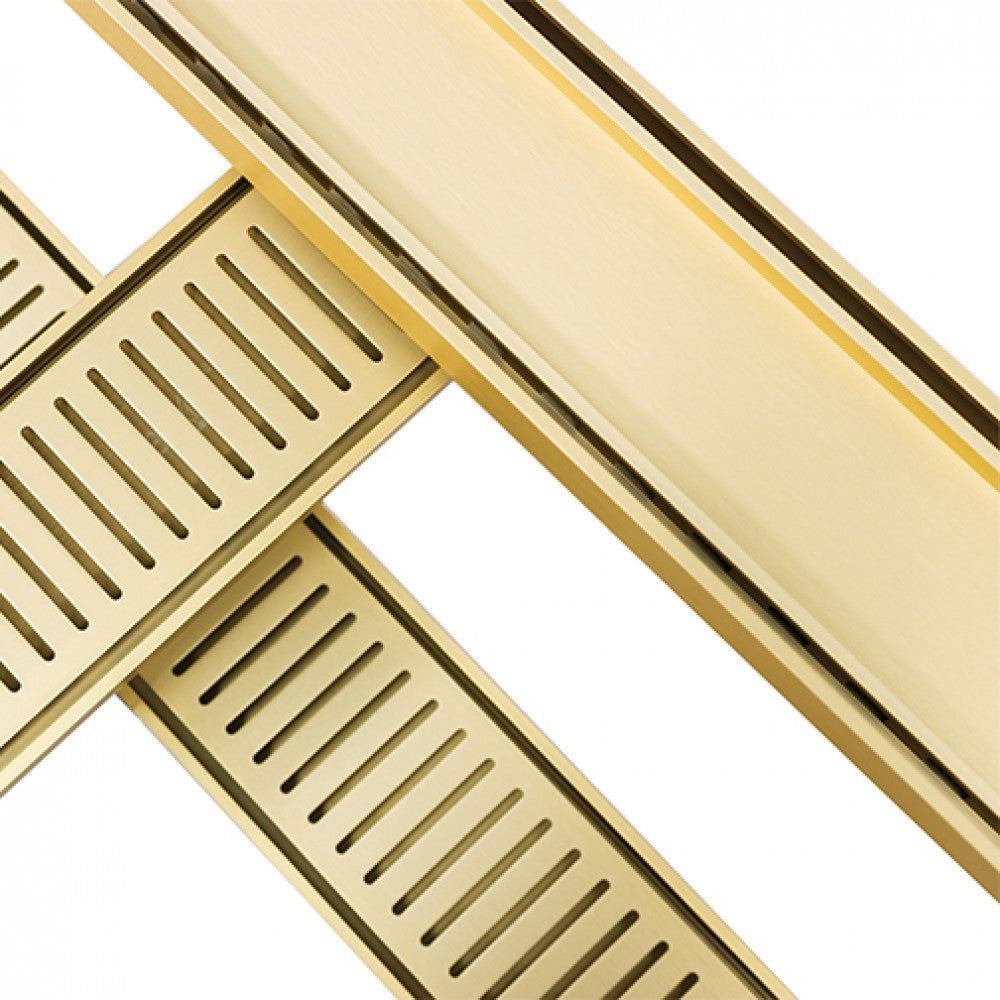

Our most popular line of the Lauxes Grates collection, the tile insert range offers a range of depths to suit most applications and tiles. All of our grates are UV Stable and comes with a 25 year warranty against fading. Backed by a Lifetime Rustproof Warranty and available in lengths up to 5.6m (extendable with joiners) these grates are ideal for indoor and outdoor projects.

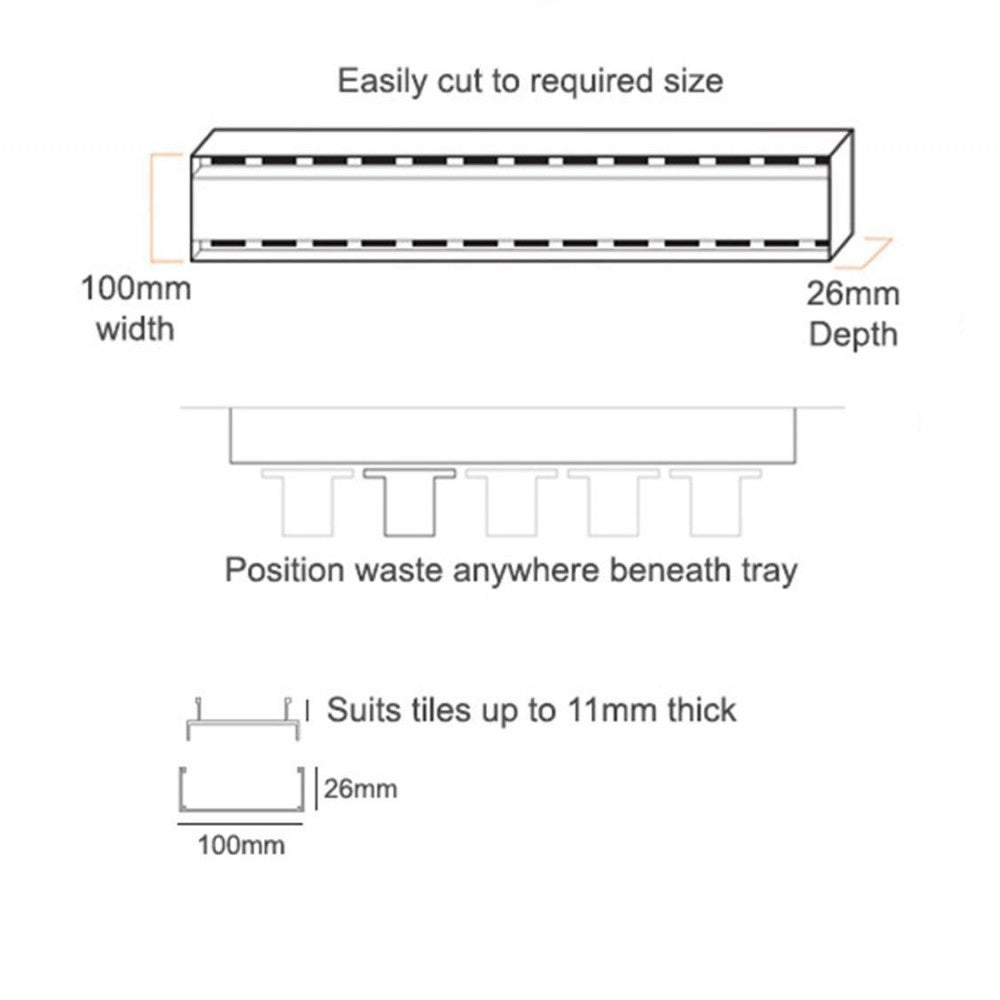

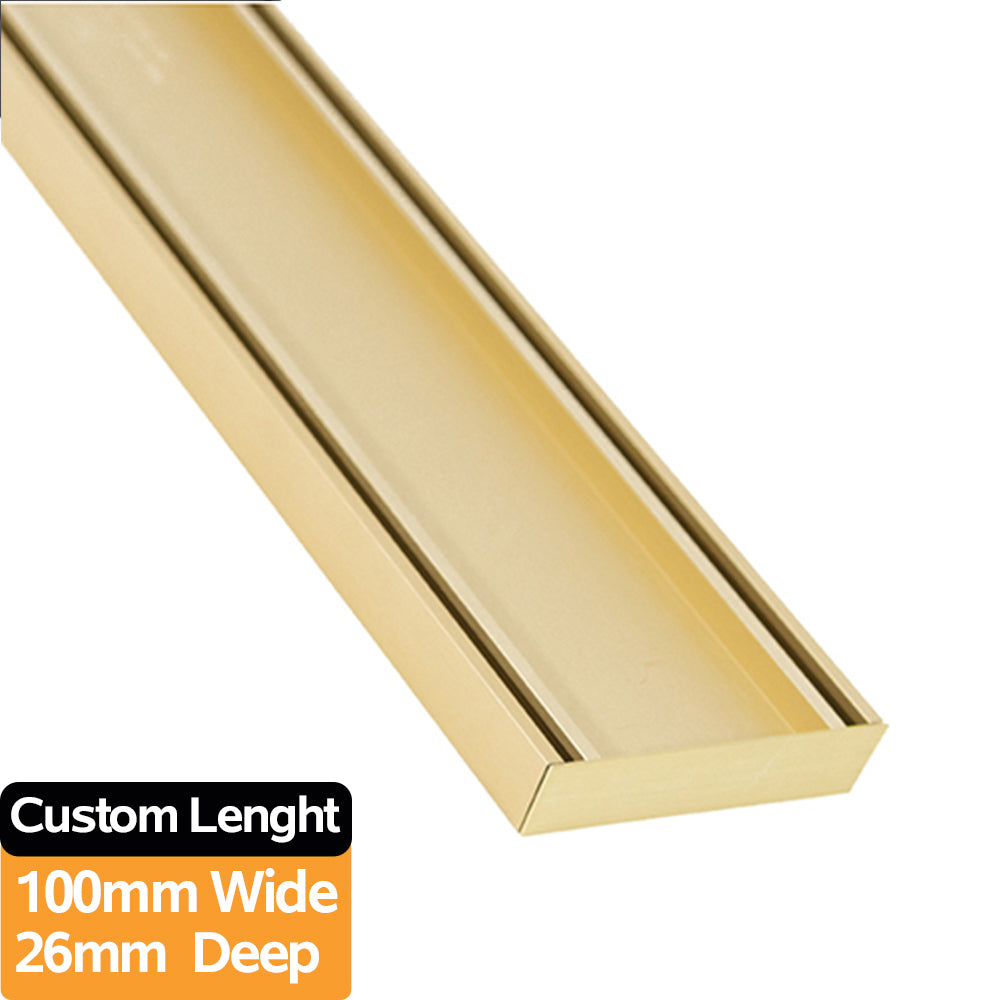

• Size: From100mm to 2500mm(L)x100mm(W)x26mm(H)
• Colour: Matte Gold
• Available in lengths up to 2.5meter (ability to extend further using Lauxes joiners)
• Easy to cut onsite for desired length
• Waste outlet can be positioned anywhere along the bottom tray
• Holds tiles up to 11mm thick

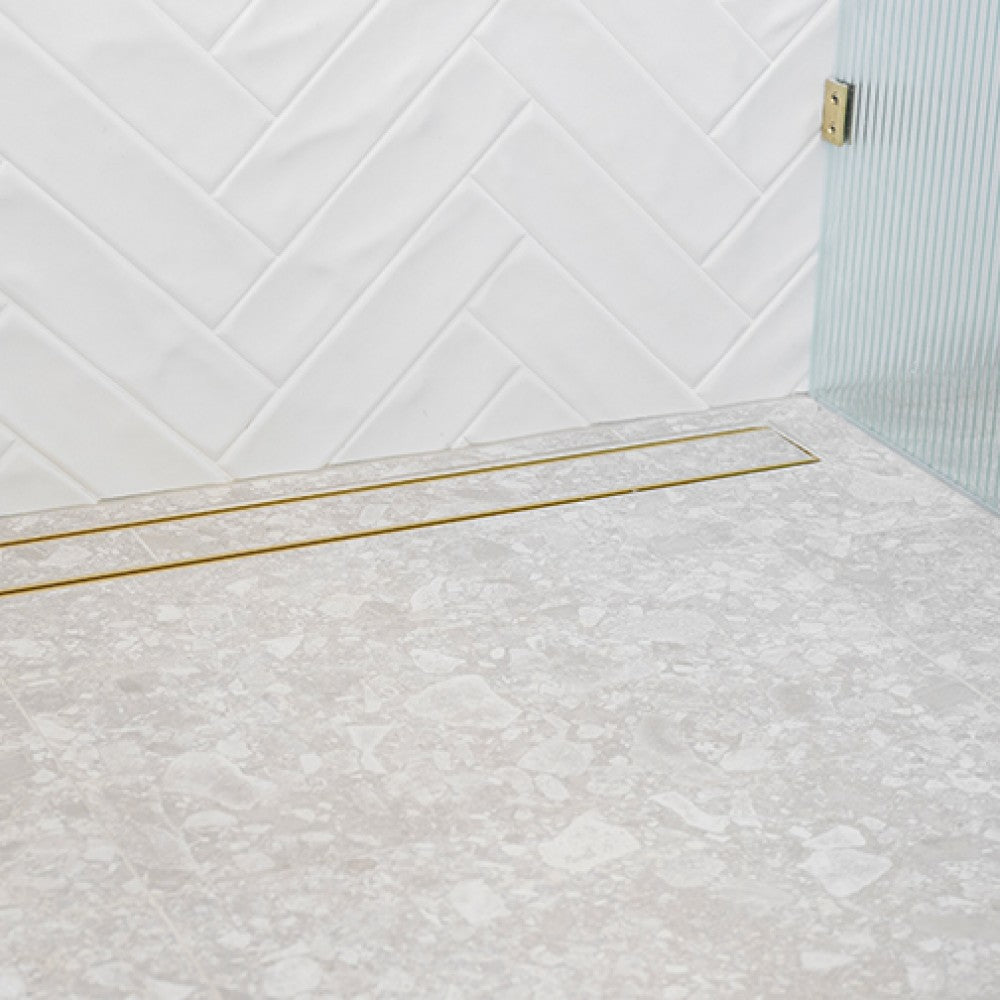

• Perfect use for indoor/outdoor applications
• Easy roll out system for cleaning
• No water tracking
• UV stable

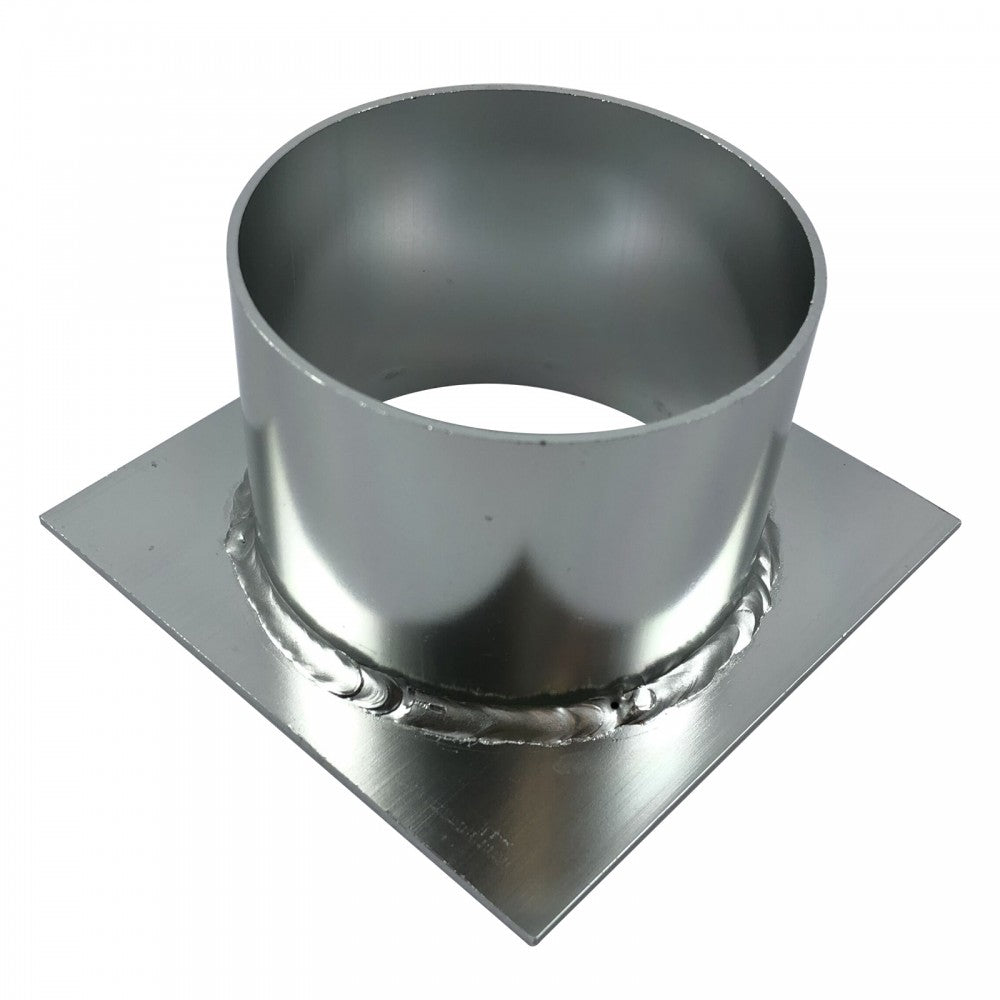

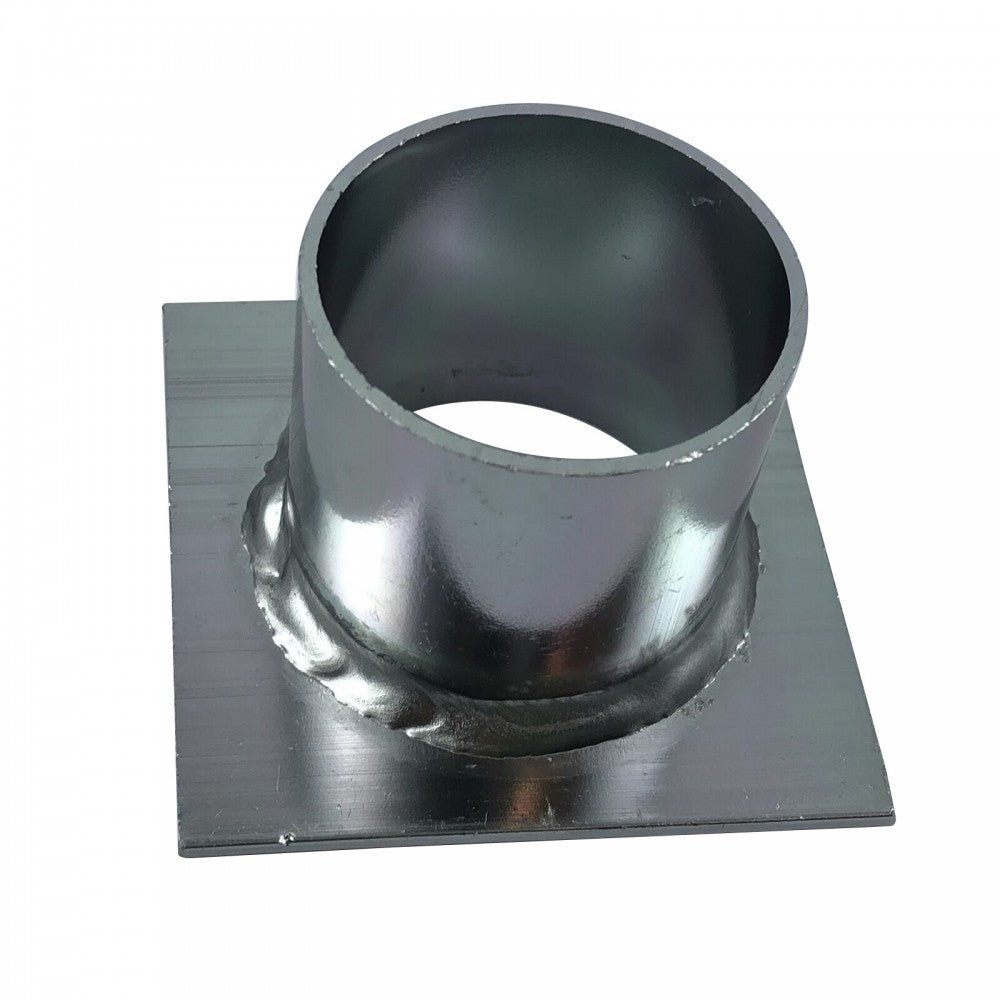

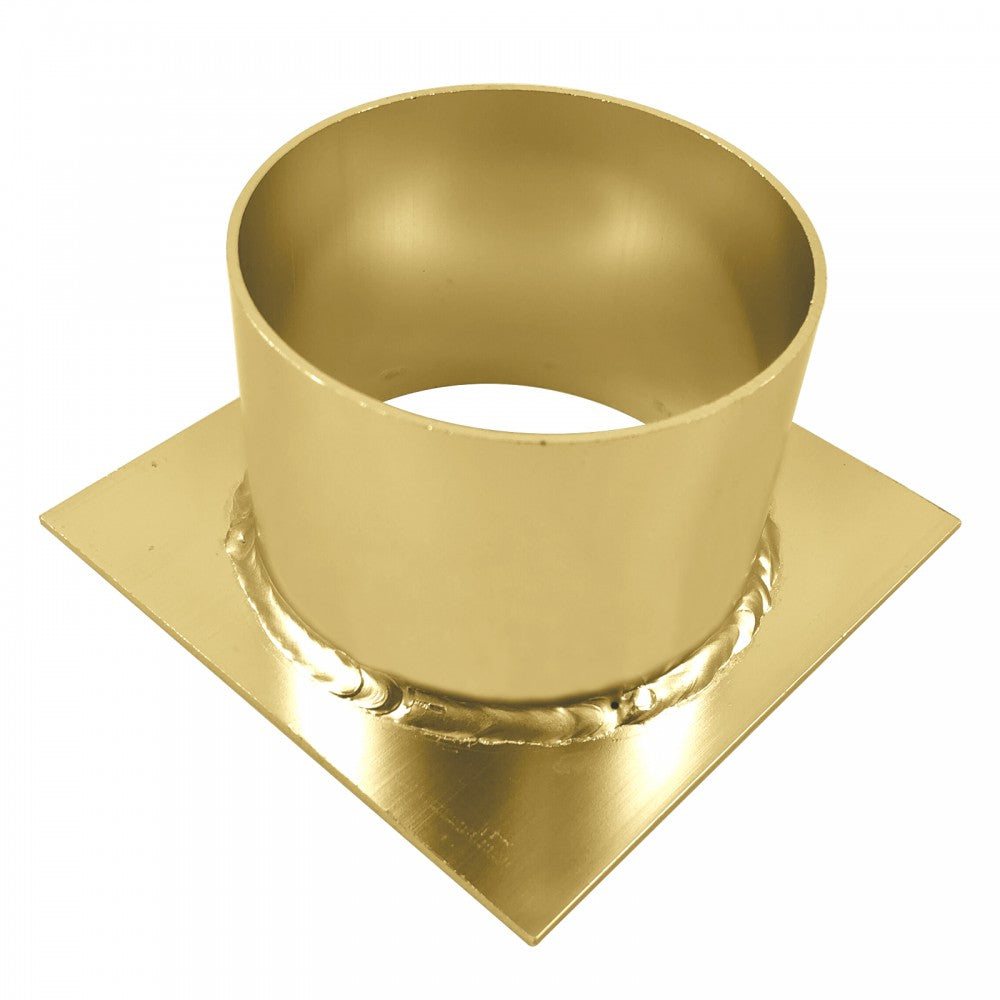

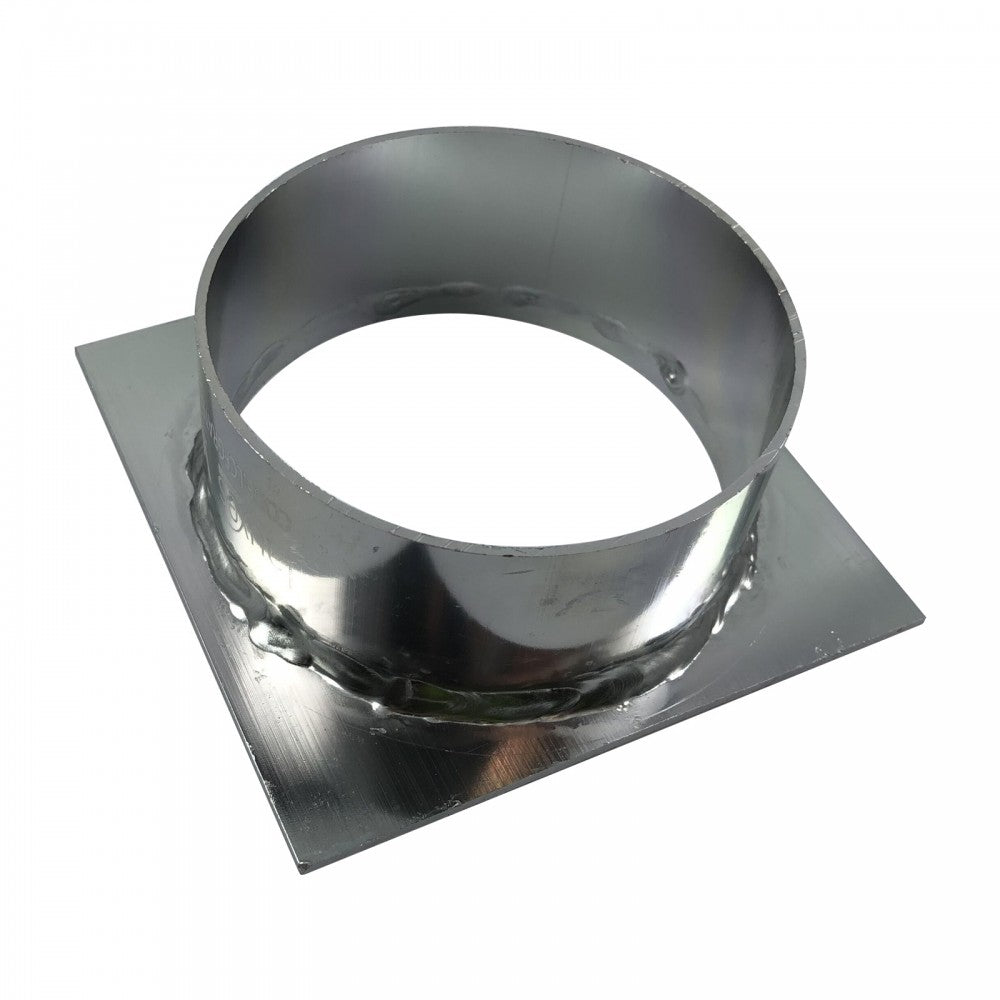

Package Contents: 1 x Floor Drain, 1 x Bottom Waste Pipe, 2 x End Caps.

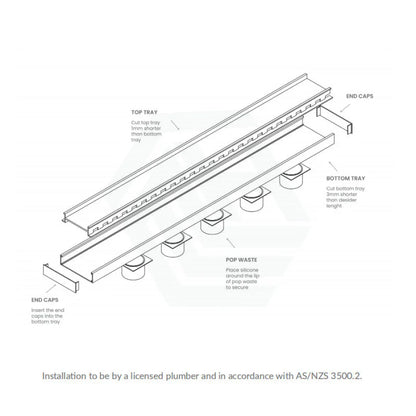

Cutting & Assembly Instructions:

For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

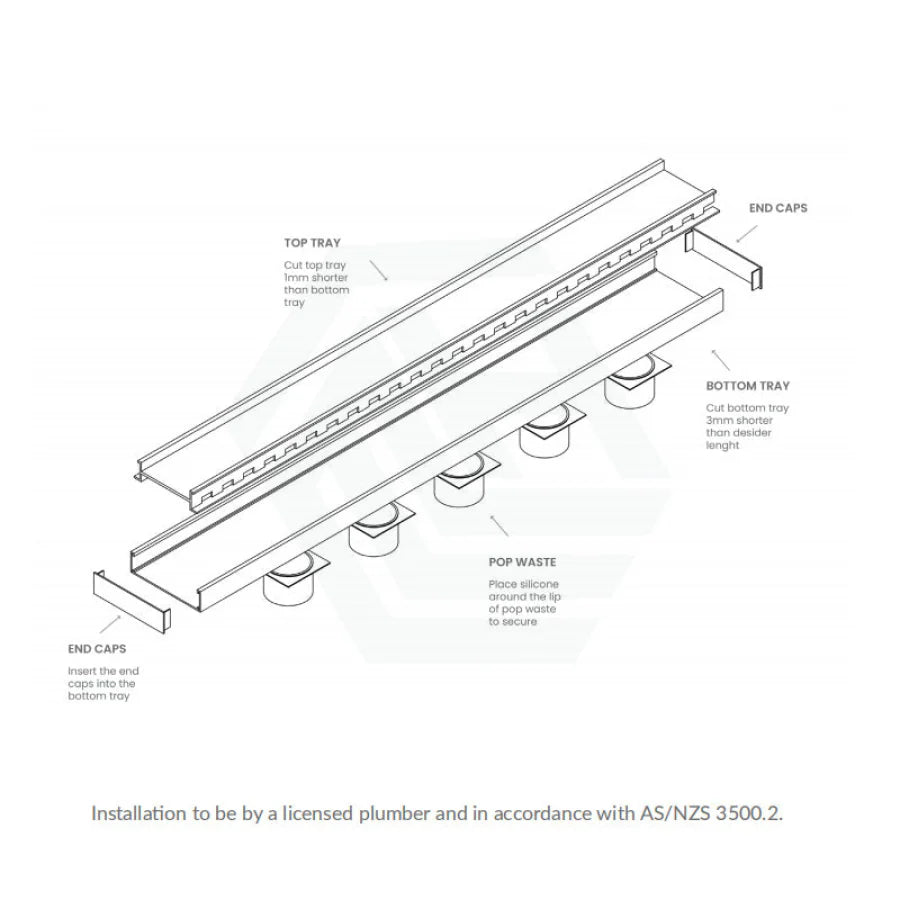

1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted

2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit

3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor

4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray

5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole

Helpful videos about Lauxes Aluminium Floor Grate:

Click here =>>  How to cut and install Lauxes Floor Grate

Click here =>>   Adding silicone to your end caps, waste and joins

Click here=>>   How to silicone the tile into a Lauxes tile insert grate

Click here=>>   How to drill a hole for pop waste

Note: Due to the many variations in Screen, Browsers and Light Settings during photo shoot, the colour of the products may be slightly different.
